Synopsis

‍

We have completed our work on mechanizing the semantics of the Ethereum Virtual Machine (EVM) and the associated Yul intermediate language in the Lean proof assistant, focusing on the Cancun hard fork. This work was generously supported by the Ethereum Foundation grant entitled “Towards an Executable Formal Model of EVM and Yul in Lean”.

‍

To make sure that our mechanization is trustworthy, we have taken great care to follow the official Ethereum Yellow Paper as well as test conformance against the Cancun tests that are available in the appropriate official Ethereum test suite. We believe that we have the most complete formal model of the EVM to date, passing 99.99% (22,330/22,332) of these Cancun execution tests.

‍

Our formal model of EVM/Yul is open-sourced and is available for the Ethereum community at NethermindEth/EVMYulLean. This work presents a significant investment in the security of Ethereum and provides a foundation for future formal verification of smart contracts, execution clients, and zkVMs.

‍

The remainder of this blog is primarily aimed at readers with prior familiarity with the EVM, the Yellow Paper, and interactive theorem proving. It focuses on design choices and semantic fidelity rather than serving as an introduction to Lean or Ethereum execution.

‍

‍

‍

Lean formalization of the EVM

‍

Semantics

‍

Sources of Truth

‍

During the formalization process, we took the Yellow Paper as the original source of truth. However, as we started to test against the official test suite, it became evident that the  behaviors expected by tests are at times different than those described by the Yellow Paper. In those cases, we either:

‍

• adjusted our formalization so that the tests would pass, if the correction was evident;
• referred to KEVM (the formalization of the EVM in the K framework, which is known for being extensively tested against the official test suite) for the expected behavior.
• ‍

Therefore, in summary, we took the conformance test suite as the ultimate source of truth, and predominantly used KEVM to understand how to bridge the differences in expected behavior between the test suite and the Yellow Paper.

‍

‍

EVM State

‍

In order to be able to share the common components of EVM and Yul states across the two developments, we construct the states modularly.

‍

‍

First, we define two state components following the Yellow Paper:

‍

/--
The `State`. Section 9.3.

- `accountMap`   `σ`
- `substate`     `A`
- `executionEnv` `I`
- `totalGasUsedInBlock` `Υᵍ`
-/
structure State (τ : OperationType) where
  accountMap          : AccountMap τ
  σ₀                  : AccountMap .EVM
  totalGasUsedInBlock : ℕ
  transactionReceipts  : Array TransactionReceipt
  substate            : Substate
  executionEnv        : ExecutionEnv τ
  blocks              : ProcessedBlocks
  genesisBlockHeader  : BlockHeader
  createdAccounts     : Batteries.RBSet AccountAddress compare

/--
The partial shared `MachineState` `μ`. Section 9.4.1.
- `gasAvailable` `g`
- `memory`       `m`
- `activeWords`  `i` - # active words.
- `returnData`   `o` - Data from the previous call from the current environment.
-/
structure MachineState where
  gasAvailable        : UInt256
  activeWords         : UInt256
  memory              : ByteArray
  returnData          : ByteArray
  H_return            : ByteArray

‍

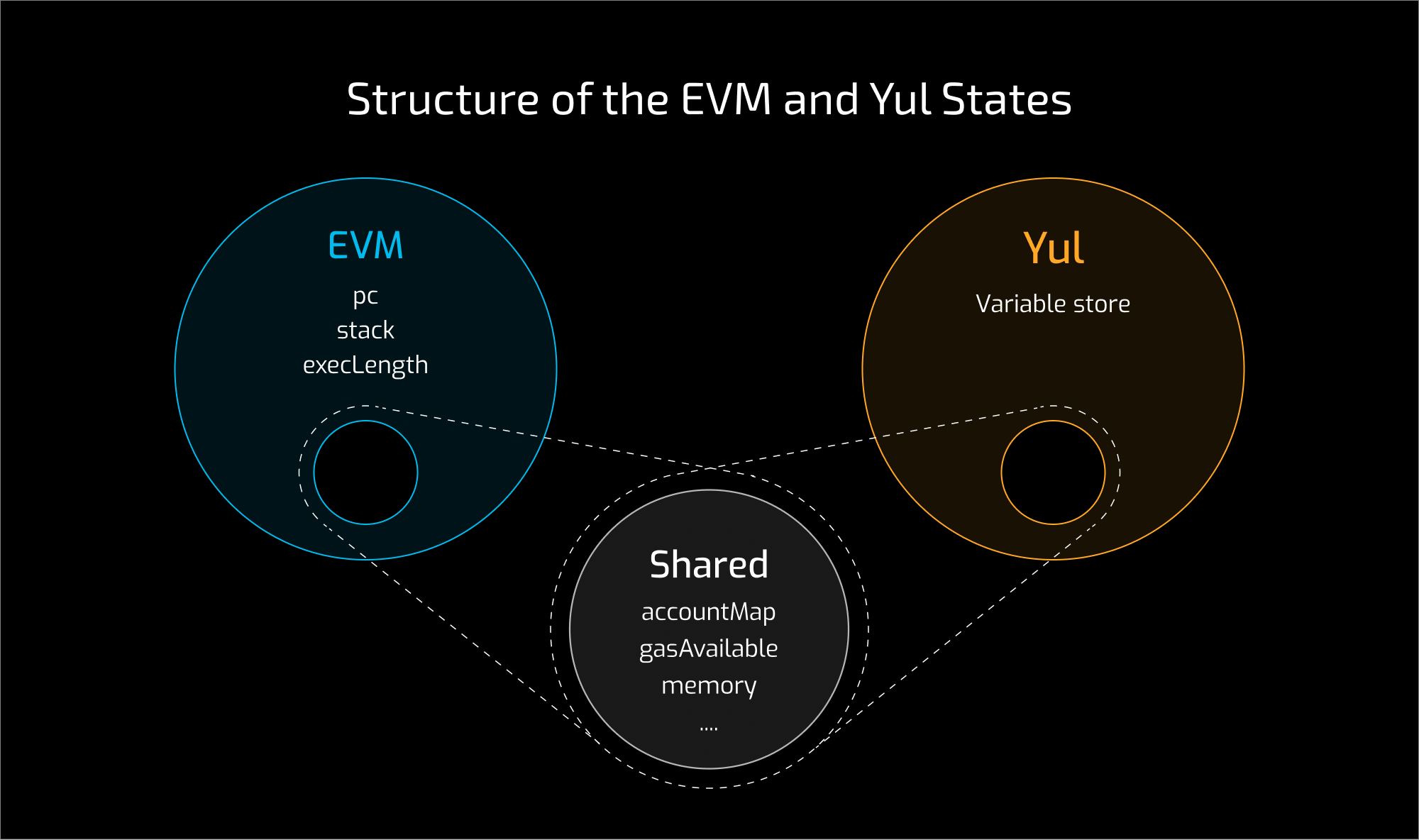

Next, we bring these two sets of state components together to form the state that will be shared by both EVM and Yul:

‍

structure SharedState (τ : OperationType)
  extends EvmYul.State τ,
          EvmYul.MachineState

‍

Finally, we add on top the EVM-specific program counter, the stack, and the execution depth counter, obtaining the full EVM state:

‍

/--
The EVM `State` (extends EvmYul.SharedState).
- `pc`         `pc`
- `stack`      `s`
- `execLength` - Length of execution.
-/
structure State extends EvmYul.SharedState .EVM where
  pc         : UInt256
  stack      : Stack UInt256
  execLength : ℕ

‍

The Yul state, as we shall see shortly, comes with a Yul-specific variable store (that is, a finite partial mapping from variable identifiers to Yul literals) on top of EvmYul.SharedState.

‍

‍

Semantic transitions

‍

The main EVM-related semantic definitions can be found in the Semantics.lean file. For example, the main step function can be found here. It fetches the next opcode to execute, then calculates the appropriate gas cost, and executes the instruction. Below is an excerpt of the code, annotated with explanations:

‍

def step
  ...
  (gasCost : ℕ)
  (instr : Option (Operation .EVM × Option (UInt256 × Nat)) := .none)
:
	EVM.Transformer
:=
  ...
  match instr with
  | .CALL => do
      -- Names are from the YP, these are:
      -- μ₀ - gas
      -- μ₁ - to
      -- μ₂ - value
      -- μ₃ - inOffset
      -- μ₄ - inSize
      -- μ₅ - outOffsize
      -- μ₆ - outSize
      let (stack, μ₀, μ₁, μ₂, μ₃, μ₄, μ₅, μ₆) ← evmState.stack.pop7
      let (x, state') ←
        call gasCost evmState.executionEnv.blobVersionedHashes
             μ₀ (.ofNat evmState.executionEnv.codeOwner)
             μ₁ μ₁ μ₂ μ₂ μ₃ μ₄ μ₅ μ₆ evmState.executionEnv.perm
             evmState
      let μ'ₛ := stack.push x -- μ′s[0] ≡ x
      let evmState' := state'.replaceStackAndIncrPC μ'ₛ
      .ok evmState'
	...
	-- Instructions other than creates and calls
  | instr =>
		EvmYul.step
		  instr
		  arg
		  { evmState with
		      gasAvailable := evmState.gasAvailable - UInt256.ofNat gasCost }

‍

It is worth noting that we have factored out the semantics of all of the opcodes that have the same semantics in EVM and Yul into a separate EvmYul.step function, so that both semantics can make use of it seamlessly.

‍

Importantly, to maintain eyeball closeness to the Yellow Paper, we also re-use the function names therein in our formalization. For example, the Z function, defined in equation (158) of the Yellow Paper, which handles exceptional halting, is defined in the Yellow Paper as follows:

‍

‍

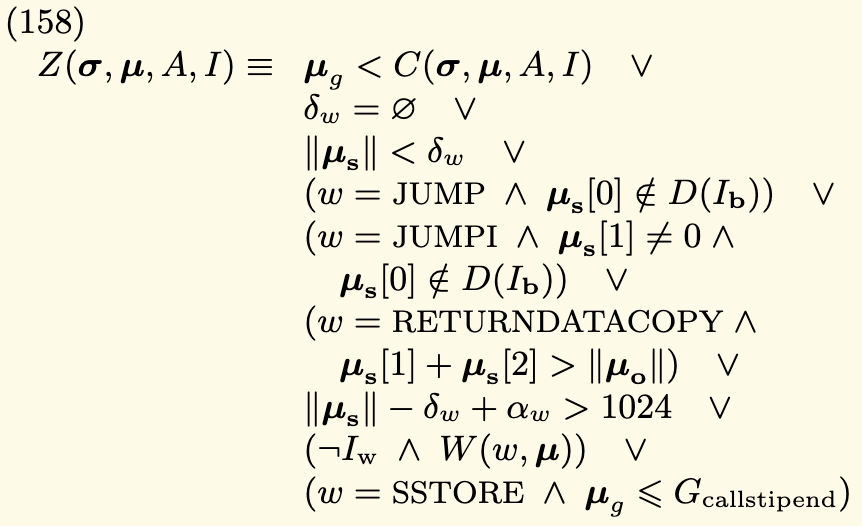

Setting out nine cases in which exceptional handling can occur. In our formalisation, it is defined as follows:

‍

let Z (evmState : State) : Except EVM.ExecutionException (State × ℕ) := do

  -- Case 1
  -- cost₁ corresponds to Cmem(μ_i') - Cmem(μ_i) of (328) of Yellow Paper
  let cost₁ := memoryExpansionCost evmState w
  if evmState.gasAvailable.toNat < cost₁ then .error .OutOfGas
  let gasAvailable := evmState.gasAvailable - .ofNat cost₁
  let evmState := { evmState with gasAvailable := gasAvailable}
  -- cost₂ corresponds to the case split of (328) of Yellow Paper
  let cost₂ := C' evmState w
  if evmState.gasAvailable.toNat < cost₂ then .error .OutOfGas

  -- Case 2
  if δ w = none
    then .error .InvalidInstruction

  -- Case 3
  if evmState.stack.length < (δ w).getD 0
    then .error .StackUnderflow

  -- Case 4
  if w = .JUMP ∧ (notIn evmState.stack[0]? validJumps)
    then .error .BadJumpDestination

  -- Case 5
  if w = .JUMPI ∧ (evmState.stack[1]? ≠ some ⟨0⟩) ∧ (notIn evmState.stack[0]? validJumps)
    then .error .BadJumpDestination

  -- Case 6
  if w = .RETURNDATACOPY ∧  (evmState.stack.getD 1 ⟨0⟩).toNat + (evmState.stack.getD 2 ⟨0⟩).toNat > evmState.returnData.size
    then .error .InvalidMemoryAccess

  -- Case 7
  if evmState.stack.length - (δ w).getD 0 + (α w).getD 0 > 1024
    then .error .StackOverflow

  -- Case 8
  if (¬ evmState.executionEnv.perm) ∧ W w evmState.stack
    then .error .StaticModeViolation

  -- Case 9
  if (w = .SSTORE) ∧ evmState.gasAvailable.toNat ≤ GasConstants.Gcallstipend
    then .error .OutOfGas

  -- Case 10: EIP-2677
  if w.isCreate ∧ evmState.stack.getD 2 ⟨0⟩ > ⟨49152⟩
    then .error .OutOfGas

  -- No exception, computed gas cost
  pure (evmState, cost₂)

‍

For most of these conditions, there exists a clear eyeball correspondence with the paper definition, with the exception of the following two details:

‍

1. The first condition computes the gas cost differently than in the Yellow Paper, first checking whether the memory expansion cost is viable (and throwing if not), and then computing the remaining gas cost with respect to the original gas cost from which the memory expansion cost is subtracted, rather than just the original gas cost. This methodology was imposed by the official test suite and has been confirmed by inspecting how KEVM handles gas costs.
2. There exists a tenth condition, implemented as prescribed in EIP-2677, for which there were tests in the test suite at the time of the formalization.

The reader can easily find in the formalization the other main functions declared in the Yellow Paper just by looking up the appropriate function names (e.g., X, Ξ, Lambda, etc.). Importantly, the Ethereum state transition function, Υ (as introduced in (1) of the Yellow Paper), can be found here.

‍

‍

Treatment of pre-compiles

‍

In our formalization, we delegate the execution of EVM pre-compiles to external, efficient Python or C implementations via Lean’s FFI interface.

‍

‍

Testing

‍

We are able to test our mechanized semantics of the EVM against the official Cancun test suite, passing 22,330 out of the 22,332 tests. This %99.99 coverage makes our formal model, to the best of our knowledge, the most conformant formal model of the EVM. The semantics of the two remaining tests is unclear and potentially non-deterministic, and to understand this we have opened appropriate pull requests here and here.

‍

Assuming the EthereumTests submodule has been checked out, the full test suite can be run using:

‍

lake test -- <NUM_THREADS> 2> out.txt

‍

where <NUM_THREADS> is the number of threads running conformance tests in parallel (with default 1). We also recommend redirecting stderr into a file (e.g., out.txt) to not pollute the output.

‍

‍

‍

Lean formalization of Yul

‍

Yul is an intermediate programming language for Ethereum smart contracts. It was designed to be a common language that can be used by various high-level languages and serves as an optimization layer in the compilation pipeline from these high-level languages to EVM bytecode. Yul has a simple, structured syntax that makes it easier to perform manual optimizations and reason about gas costs compared to working directly with EVM assembly, while still providing low-level control over contract execution.

‍

‍

Syntax

‍

We straightforwardly formalize the syntax of Yul as a mutually inductive definition covering function definitions, expressions, and statements as follows:

‍

mutual
  inductive FunctionDefinition where
    | Def : List Identifier → List Identifier → List Stmt → FunctionDefinition
  deriving BEq, Inhabited

  inductive Expr where
    | Call : (PrimOp ⊕ YulFunctionName) → List Expr → Expr
    | Var : Identifier → Expr
    | Lit : Literal → Expr

  inductive Stmt where
    | Block : List Stmt → Stmt
    | Let : List Identifier → Option Expr → Stmt
    | ExprStmtCall : Expr → Stmt
    | Switch : Expr → List (Literal × List Stmt) → List Stmt → Stmt
    | For : Expr → List Stmt → List Stmt → Stmt
    | If : Expr → List Stmt → Stmt
    | Continue : Stmt
    | Break : Stmt
    | Leave : Stmt
    deriving BEq, Inhabited, Repr
end

‍

‍

Semantics

‍

The semantics of Yul is formalized as follows. First, we define the state on which Yul programs operate as:

‍

/--
A jump in control flow containing a checkpoint of the state at jump-time.
  - `Continue`: Yul `continue` was encountered
  - `Break`   : Yul `break` was encountered
  - `Leave`   : EVM `return` was encountered
-/
inductive Jump where
  | Continue : EvmYul.SharedState .Yul → VarStore → Jump
  | Break    : EvmYul.SharedState .Yul → VarStore → Jump
  | Leave    : EvmYul.SharedState .Yul → VarStore → Jump

/--
The Yul `State`.
  - `Ok state varstore` : The underlying `EvmYul.SharedState` and variable store.
  - `OutOfFuel`         : No state, denoting we have run out of fuel (required for proving termination in Lean).
  - `Checkpoint`        : Used for restoring a previous state due to control flow.
-/
inductive State where
  | Ok         : EvmYul.SharedState .Yul → VarStore → State
  | OutOfFuel  : State
  | Checkpoint : Jump → State

‍

noting that the use of OutOfFuel allows easier reasoning about termination in Lean and does not get triggered in practice, whereas the use of Checkpoint allows for delayed reasoning about execution errors. These choices can both be made differently. Also, note how the Yul state includes the shared EvmYul.SharedState state, together with a variable store, that is, a finite partial mapping from program variables to Yul literals.

‍

The interpreter is then defined in Interpreter.lean, through a series of mutually recursive functions that evaluate expressions (eval) and statements (exec).

‍

‍

Testing

‍

As there are no official conformance tests available for Yul at the time of writing this blog, we have manually created a small test suite ourselves. These tests are defined here and can be executed by running:

‍

lake exe yulSemanticsTests

‍

‍

Limitations

‍

There are certain aspects of our Yul formalization that require further work. In particular:

‍

• we do not model gas consumption;
• we do not run the fallback function of a smart contract when it receives ether;
• we do not model the CREATE and CREATE2 opcodes, as these would require decompilation of the provided bytecode of the contract back into Yul;
• we do not model the EXTCODESIZE, EXTCODEHASH, EXTCODECOPY, CODECOPY, and CODESIZE opcodes, as these have to inspect the bytecode of a contract;
• we have not implemented the halting mechanism for the SELFDESTRUCT opcode.

‍

‍

‍

Where do we go from here?

‍

We believe that this work presents a foundation on top of which numerous security-related efforts for Ethereum can be built. For example:

‍

• it could be integrated into our Clear framework, where it would serve as a trusted base for proving properties of smart contracts, for tractability likely in conjunction with an automated tool such as Kontrol;
• it could be used as the basis for a future verified Yul-to-EVM compiler, which, in turn, could be used as part of a pipeline for a verified Solidity-to-EVM compiler;
• assuming it is regularly updated to the latest Ethereum hard fork, it could be used by the Ethereum foundation as the official executable source of truth for the semantics of the EVM and Yul.
